520nm 30mw Laser Diode 3.8mm
Absolute Maximum Ratings (Tc=25℃)
Parameter | Symbol | Values | Unit | |
Min. | Max. | |||
Operating Current | If | - | 180 | mA |
Reverse Voltage | Vr | 2 | V | |
Operating Case Temperature | Tc | 0 | +60 | ℃ |
Storage Temperature | Tstg | -40 | +85 | ℃ |
515nm 30mw Green Laser Diode 3.8mm High Quality Laser Diode
Green 520nm Laser Diode LD TO18 Can 520nm Laser Diode 30mw
Electrical and Optical Characteristics (Tc=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Optical Output Power | Po | - | 30 | - | mw |
Emission Wavelength | λp | 510 | 515 | 530 | nm |
Threshold Current | Ith | - | 50 | 75 | mA |
Operating Current | If | - | 120 | 140 | mA |
Operating Voltage | Vop | - | 6.7 | 8.0 | V |

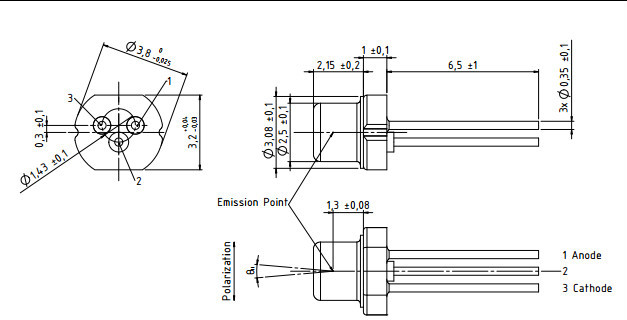

Outline package

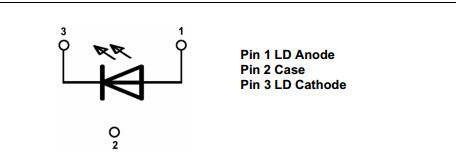

Pin connection
