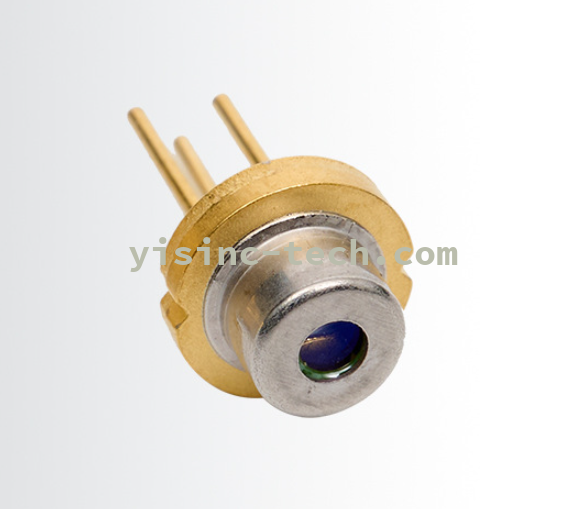

Blue 445nm Laser Diode 1.6w 5.6mm TO18
Blue 445nm Laser Diode 1.6w 5.6mm TO18

Blue 445nm Laser Diode 1.6w 5.6mm TO18

Product ID : YSC445LD1.6-1
Product Tags :
Product Attributes :

Blue 445nm Laser Diode 1.6w 5.6mm TO18

Product Description

Blue 445nm Laser Diode 1.6w 5.6mm TO18

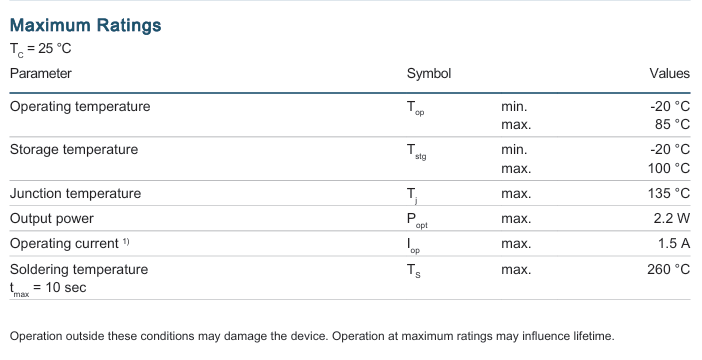

Absolute Maximum Ratings    (Tc=25)

Item

Symbol

Values

Unit

Operating Current

If

1.6

A

Reverse Voltage

Vr

5

V

Storage Temperature

Tstg

-40~85

Operating Case Temperature

Tc

0~+70

Soldering Temperature max.10 sec.

Tsolder

260



Laser Diode 445nm 1.4w 5.6mm TO18 Blue 445nm laser diode 1.4w

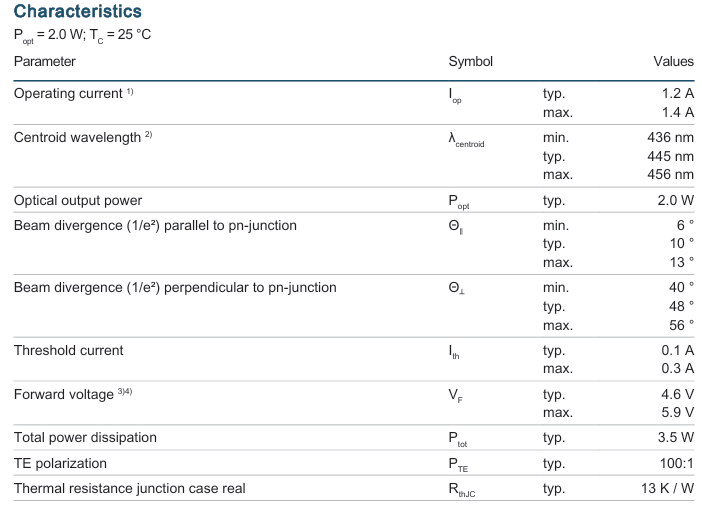

Initial Electrical /Optical Characteristics(Tc=25)

Item

Symbol

Min

Typ.

Max

Unit

Optical Output Power

Po

1.2

1.4

-

W

Dominant Wavelength

λd

440

450

460

nm

Threshold Current

Ith

-

0.2

0.6

A

Operating Current

Iop

-

1.2

1.5

A

Operating voltage

Vop

-

-

6.5

V

Laser Diode 445nm 1.4w 5.6mm TO18 Blue 445nm laser diode 1.4w

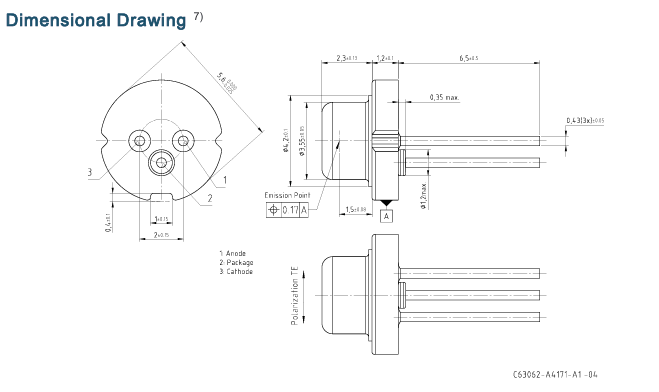

Outline Dimension (in: mm)
